Parts Washer, TuboWash, HotWash, Apollo

Models

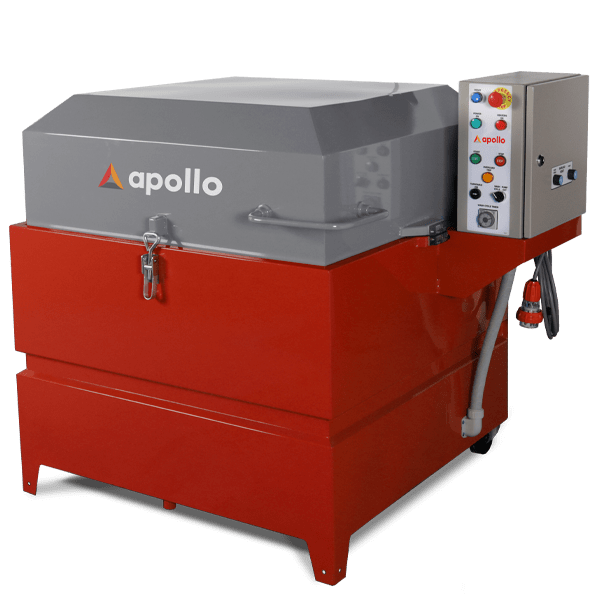

SW 0800 (PW2)

SW 1100 (PW3)

SW 1400 (PW4)

SW 1409 / 1612  (PW5 / PW6)

SW0800 (PW2)	SW1100 (PW3)	SW1400 (PW4)	SW1409 & SW1612 (PW5/6)
Basket: 800mm	Basket: 1,100mm	Basket: 1,400mm	Basket: 1.4m - 1.6m
Max Job Height: 470mm	Max Job Height: 630mm	Max Job Height: 660mm	Max Job Height: 975-1200mm
Max Job Weight: 400kg	Max Job Weight: 750kg	Max Job Weight: 1,000kg	Max Job Weight: 2,000kg
Water Vol: 120L	Water Vol: 250L	Water Vol: 330L	Water Vol: 360L-450L
Pump: 2.2kW - 250 kpa	Pump: 4kW - 350 kpa	Pump: 5.5kW - 400 kpa	Pump: 5.5kW - 420 kpa
Power: 3 phase or single phase	Power: 20A, 3 phase	Power: 32A, 3 phase	Power: 32A, 3 phase
Elements: 3 x 2.4 kW	Elements: 3 x 2.4 kW	Elements: 3 x 3.6 kW	Elements: 3 x 3.6 kW (1409) 3 x 4.8 kW (1612)
Gear Driven: Yes	Gear Driven: Yes	Gear Driven: Yes	Gear Driven: Yes
Approx WxD: 1.3m x 1.3m	Approx WxD: 1.6m x 1.7m	Approx WxD: 1.9m x 2.0m	Approx WxD: 2.1m x 2.0m Approx WxD: 2.2m x 2.3m (+ 700mm door open)

All equipment is certified to comply with Australian Standards AS4024 (Machine Safety):
* Gear driven baskets, so that 100% of the pump pressure is used to clean your parts, not spin the basket
* 24/7 timers that control the elements for you. Never forget to turn the washer off ever again.  #
* Automatic water level control.  It protects the heating elements and saves the inconvenience of needing to top the water off. #
* Adjustable wash cycle timer
* Australian designed and manufactured.  All equipment is fully supported by an Australian manufacturer and distribution network.
# - denotes that the feature is not included on the SW0800 (PW2)

AT400 (wheels optional)

AT800 (with centrifuge)

SS80NF - 60-100L Sink

SS150NF - 100-150L Sink

AT 400 Hot Tank (400L) (no wheels)	AT 800 Hot Tank (800L)	SS80 Non-Filtered Sink	SS150 Non-Filtered Sink
Platform (L x W)1000mm x 600mm Floor Space (L x W)1260mm x 1035mm Working Depth: 600mm Platform Raised: 860mm Max. Load: 175Kg Air Required: 5CFM @100PSI Power Required: 415V, 10A Element Size: 3 x 2.4Kw Oil Skimmer: N/A Certrifugal Filter: N/A Nb: Wheels are an optional extra	Platform (L x W) 1210mm x 780mm Floor Space (L x W)1450mm x 1450mm Working Depth: 600mm Platform Raised: 1000mm Max. Load: 400Kg Air Required: 10CFM @100PSI Power Required: 415V, 20A (5 pin) Element Size: 3 x 3.6Kw Oil Skimmer: N/A Certrifugal Filter: Standard - Can be removed as an option	Length (inside): 800mm Width (inside): 540mm Height (to lip): 950mm Drum/Tank Size: 60L - 100L Power Required: 240V Pump Output: 10LPM Light Fitted: Yes Metal Gauge: 1.6mm Non-filtered optionAvailable (with 50 micron mesh filter), or with Filtration: 3 - 25 micron	Length (incide): 1370mm Width (inside): 600mm Height (to lip): 950mm Drum/Tank Size: 100L - 160L Power Required: 240V Pump Output: 10LPM Light Fitted: Yes Metal Gauge: 3mm Non-filtered optionAvailablle (with 50 micron mesh filter), or with Filtration 3 - 25 micron

Larger hot tanks available
Options include: Skimmers; centrifuge; platforms, wheels on smaller tanks

Sinks are available in pneumatic, filtered and non-filtered versions

Models
